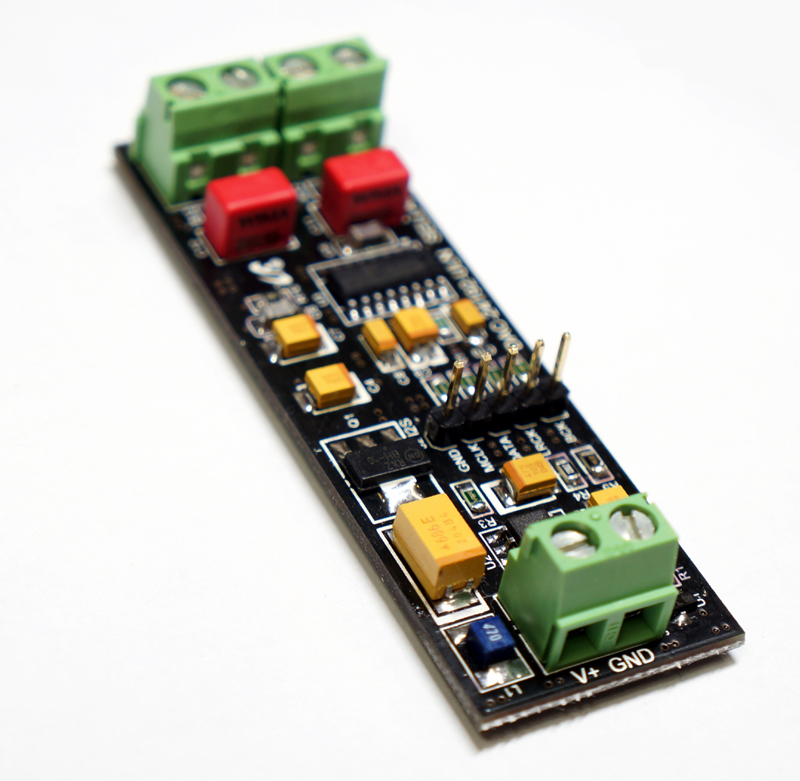

<General Properties>
● ES9023 DAC Chip
● 0.1% Low Noise Thin Film Resistors at Signal Pass and Regulator Circuit
● Low ESR Tantalum Capacitor
● WIMA FKP2 Capacitor for Output Filter
● High Quality SMD Film Capacitor
● Ultra Low Noise Regulation Circuit
- Noise: 8nV√Hz @1KHz
- PSRR : 106dB
● Gold Plated PCB
● Size: 71 x 24(W x D:mm)
<Specificatron>

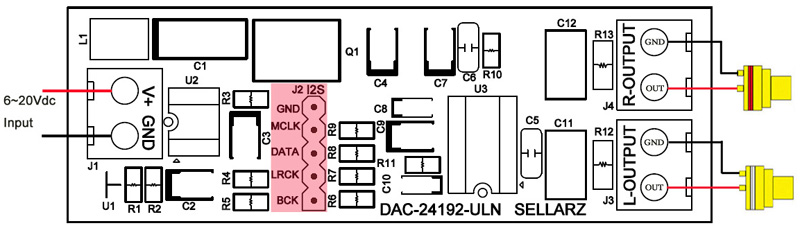

● I2S Input : MCLK(SCK), DATA, LRCK, BCK, GND
● Dynamic Range : 112dB
● Output Level : 2.0V RMS
● THD + NOISE : 0.002%
● Resolution/Sampling Rate : Up to 24bit/192KHz
● DC Offset : <4mV
● Supply : Regulated or Unregulated 6~20Vdc/31mA
|
