<General Properties>

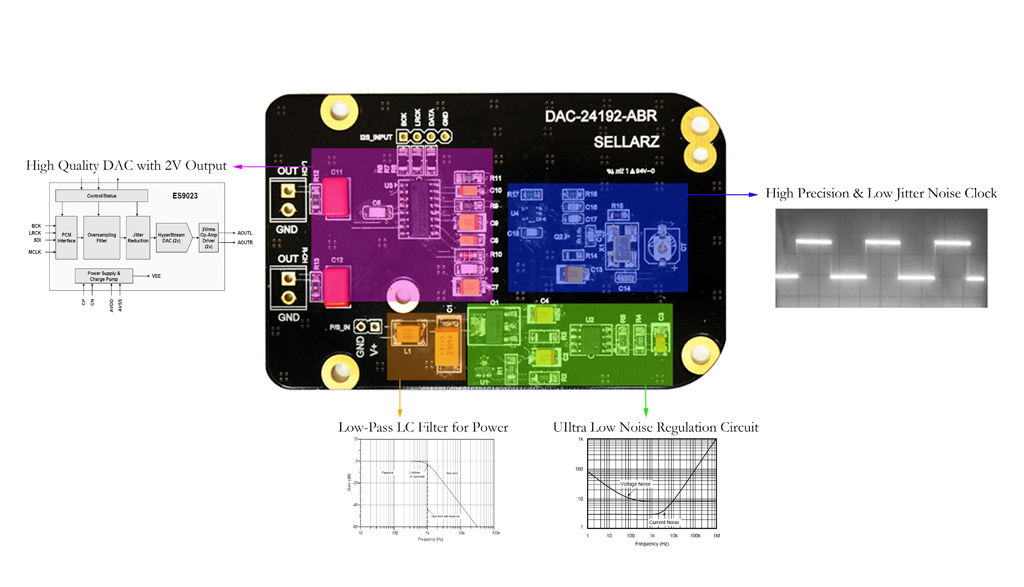

● ES9023 DAC Chip
● 0.1% Low Noise Thin Film Resistors at Signal Pass and Regulator Circuit
● Low ESR Tantalum Capacitor
● WIMA FKP2 Capacitor for Output Filter
● High Quality SMD Film Capacitor
● Ultra Low Noise Regulator Circuit
- Noise: 8nV√Hz @1KHz
- PSRR : 106dB
● High Precision & Low Noise Phase Noise Clock(HPRC-331 SE 급)
- Frequency : 49.152MHz
- Frequency Stability : ±0.5ppm@ 25℃
- Phase Noise : 0.1793 ps RMS
● Gold Plated PCB
● Size: 85 x 54.5(W x D:mm) <Specificatron>

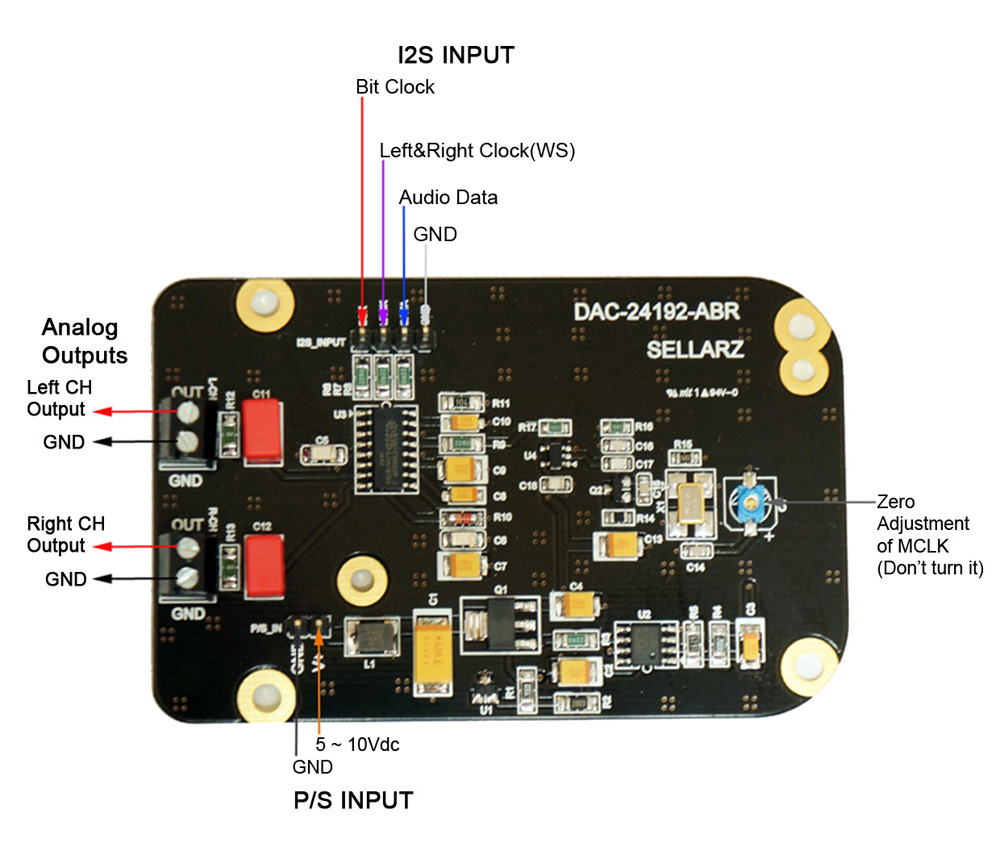

● I2S Input(DATA, LRCK, BCK, GND)
● Dynamic Range : 112dB
● Output Level : 2.0V RMS
● THD + NOISE : 0.002%
● Resolution/Sampling Rate : Up to 24bit/192KHz
● DC Offset : <4mV
● Supply : Regulated or Unregulated 5~10Vdc/40mA
|
|
|
|
|
|
